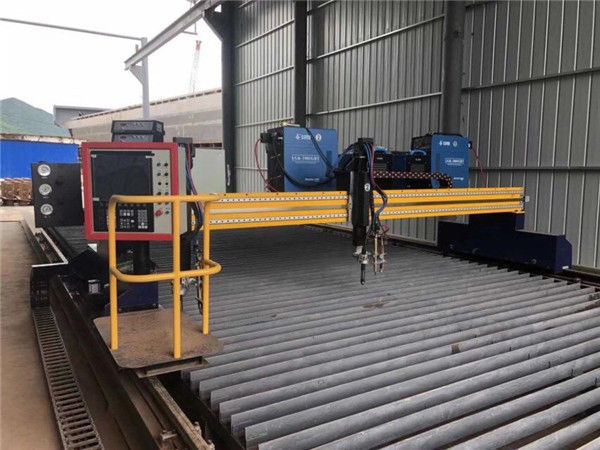

China Big Size CNC Gantry Flame Plasma Cutting Machine
મૂળભૂત માહિતી


Cutting Thickness: 1-50mm
Cutting Speed: 0-5000mm/min
વોલ્ટેજ: AC220V
Gas: Oxygen
Working Material: Iron, Steel, Aluminum Sheets, Galvanized Sheets
Working Thickness: 0.5-30mm or Customize
Power: 8.5kw
Input Voltage: 380V 50Hz
વર્કિંગ મોડ: અનટચેડ આર્ક સ્ટ્રાઇકિંગ
Transmit Way: Taiwan Imported Ball Screw
Rail Guide: Precision Work Round
Optional Power Source: America Hypertherm and Ame
Z Axis Travel: 0-70mm
Itam: CNC Plasma Metal Cutting Machine



ઉત્પાદન વર્ણન


It is a kind of CNC cutting equipment with high efficiency and high precision, and can reduce labor intensity.
This machine uses gantry style, and has plasma or flame cutting style. It is easy to maintain and to operate, and it is reliable.
It has compact and rational construction, and the price is reasonable. It is more suitable for mediumsized and small enterprises to buy and use.



Main configuration and function introduction


# Strong drag chain--Traction and protection, smart high intensity, ametabolic rigidity, easy installation, use and reliable, easy yo tear open outfit.
# To protect the cable also make machine overall looks more beautiful
# Double heads--plasma cutter head can cut less than 40mm thickness( depends on power supply's current),
flame cutter head can cut 200mm thickness, can perfect meet your cutting demands
# Limit switch---Use it to control the workpiece movement or automatic feed, to avoid collision accident
# 24KGS guide rail--more stable
# Starfire cutting system and HYD auto arc voltage THC ---
The numerical control system with high disposes, the automatic striking arc, the performance is stable,Automatic height adjust system
---can according to your material planeness, cutting head can automatically stable, and fast adjust.



ટેકનિકલ સ્પષ્ટીકરણ


નાItemspecification
1મોડેલFMP2030
2Horizontal track space3m
3અસરકારક કટીંગ પહોળાઈ2m
4Longitudinal track space4m
5અસરકારક કાપવાની લંબાઈ3m
6કટીંગ સ્પીડ20-25m/min
7ચોકસાઇ કટીંગ0.05 મીમી
8જાડાઈ કાપવા0-40mm--plasma cutter head
200mm--flame cutter head
9કટીંગ સિસ્ટમStarfire cutting system (English)
10Arc height controlArc torch voltage height control
11Table structureWhole iron body, thick steel
12મોટરJapan YASKAWA servo motor--3 sets
13Planet reducerJapan SHIMPO
14Motor power750w
15પ્રસારણ માર્ગHigh precision rack gear
16માર્ગદર્શિકા રેલAll axis use HIWIN square rail
17Solenoid valveItaly CEME
18વીજ પુરવઠોHypertherm MAXPRO200A
19Drawing softwareસીએડી
20માળો સ softwareફ્ટવેરAustralia FASTCAM software
21Output wayArtcam, type3
22LCD display dimension10.4 inches
23ડ્રાઇવ મોડડ્રાઇવ મોડ
24Heંચાઈ નિયમન ઉપકરણArc voltage height and Electric adjustable high
25ગેસ પ્રેશરMax. 0.1 Mpa
26ઓક્સિજન દબાણMax. 0.7 Mpa
27Other partsOne set plasma nozzle sent for free



એપ્લિકેશન


They are widely used in ship, car, boiler pressure vessel, steel structure, plane, engineering machinery and other fields.
They use flame cutting to cut carbon steel, use plasma to cut stainless steel, aluminum, copper and other metal plates. They are especially fit for irregular drawing batch cutting.
